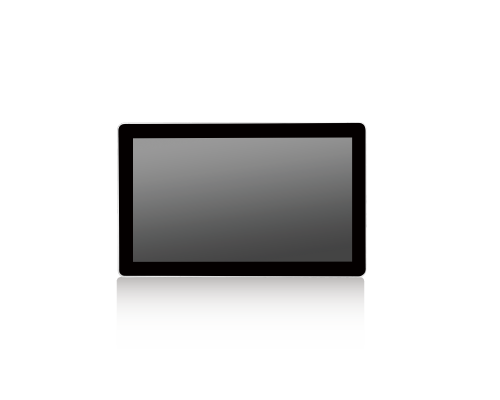

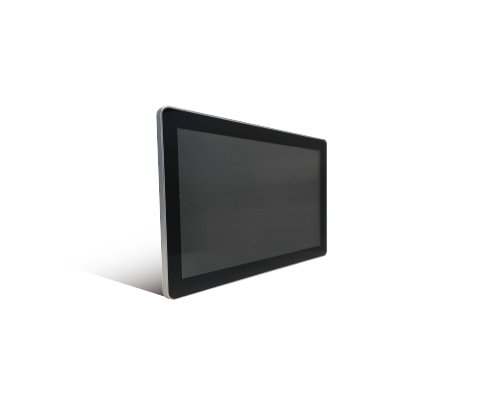

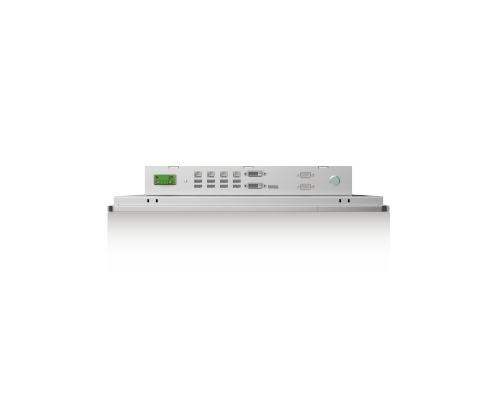

HPC-9618

The HPC-9618 is an industrial capacitive touch tablet computer that combines industrial display and touch screen technology. The product has a compact structure, is easy to install and operate, and is a high-performance and highly reliable industrial computer system. The whole machine adopts an 18.5-inch high-definition LCD screen with a resolution of 1920*1080, featuring rich and fine colors and a wide viewing Angle. It is powered by 24V DC and adopts a projected 10-point capacitive screen. The main unit is equipped with an Intel Core 6th / 7th generation CPU. Configurable large-capacity solid-state SSD, with memory support up to 32G capacity. The HPC-9618 supports hook-type embedded installation. The front panel complies with the IP65 water and dust resistance standard, preventing water splashes from entering during installation in the control cabinet. The high-strength all-steel box structure features shock resistance and vibration protection functions. Especially, the specialized EMC design enables the entire machine to have excellent anti-interference ability and be able to adapt to the harsh working environment in industrial sites. It is widely applied in industrial sites with strong interference such as factory automation, mechanical manufacturing, numerical control equipment, textile equipment, communication networks and power automation.

Product manual（PDF） Technical data Ordering information

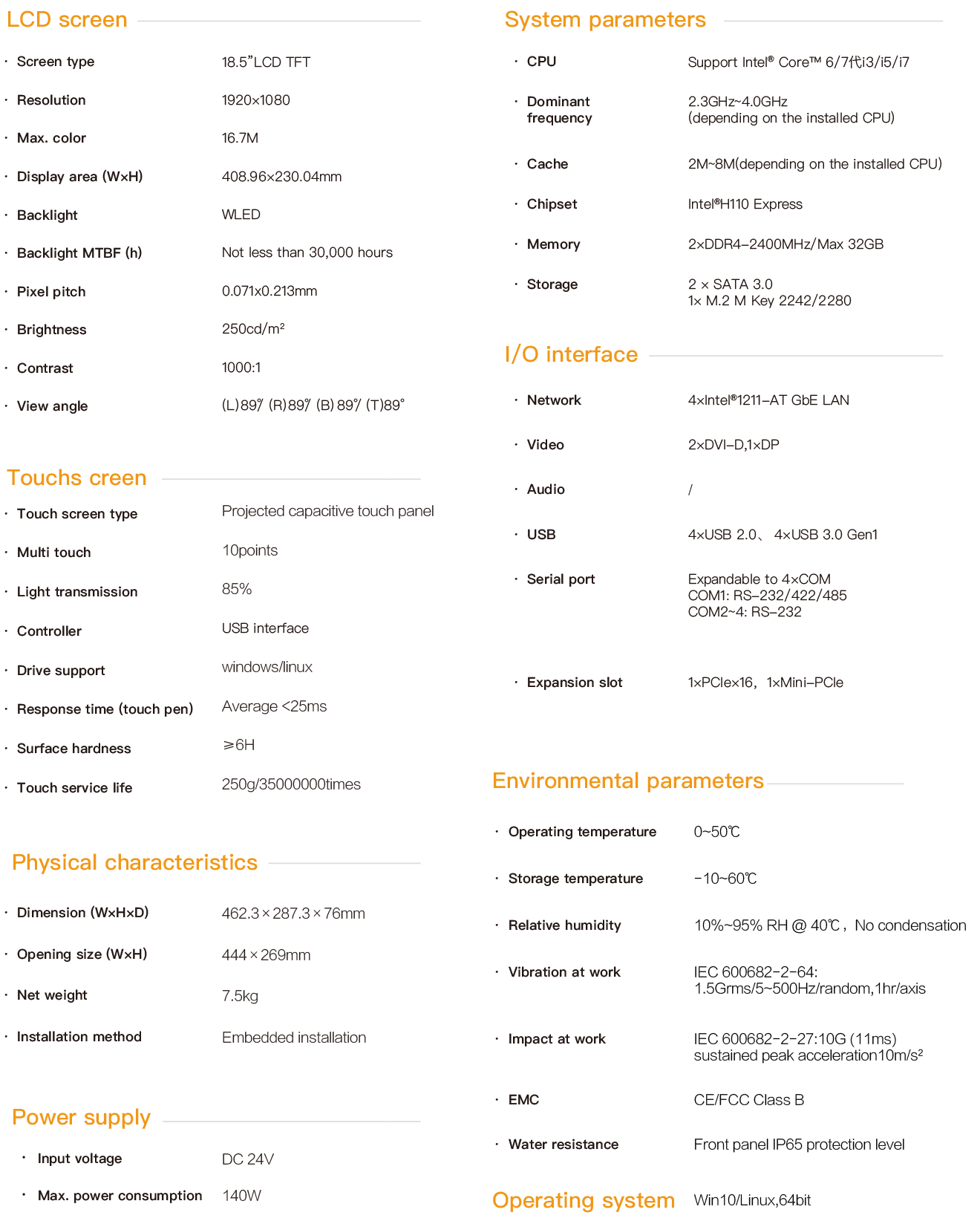

Product detailed specifications（HPC-9618)
